ATEX wall sockets & Interlock Switch
- Home
/ Products
ATEX wall sockets & Interlock Switch
ATEX Interlocked Socked-outlets antistatic thermosetting GRP from 16A to 63A, IP66, for zones 2, 21, 22

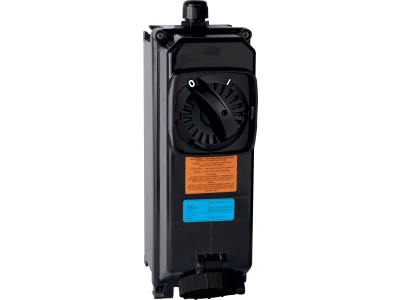

TAIS-EX watertight wall-mounted interlocked socket-outlets with housing in antistatic thermosetting GRP are designed for use in explosion hazardous areas, as defined in the ATEX Directive 2014/34/EU.
The cover is attached to the body by means of stainless steel screws, while the sealing is ensured by a reinforced gasket in non-ageing elastomer which ensures an IP66 protection rating.
The interlock mechanism is made of metal, and the operation handle is category AC23A-AC3 at rated current with conditional short-circuit current ≥ 10kA.
Suitable for applications in areas at risk of explosive atmospheres as defined in ATEX Directive 2014/34/EU.
Atex
The company has established experience in extreme environments where flammable materials, oxidizing chemicals, salt solutions, acids and motor and vegetable oils are treated. Palazzoli is the absolute market leader of ATEX products, explosion-proof equipment intended for high-risk environments.Power plants, chemical industries, oil platforms, military bases and refineries are just a few areas where lighting fixtures must prevent any spark propagation and ensure safe and reliable operation over time.
Palazzoli is a leading manufacturer of ATEX products, specializing in explosion-proof equipment for high-risk environments such as power plants, chemical industries, and military bases. Their products are designed to prevent spark propagation and ensure safe operation in hazardous areas, conforming to standards like ATEX 94/9/CE and EN 60079-10. Palazzoli's ATEX equipment is certified for use in various hazardous zones, including ZONE 1, ZONE 2, ZONE 21, and ZONE 22, making them suitable for a wide range of applications
|
TAIS-EX watertight wall-mounted interlocked socket-outlets with housing in antistatic thermosetting GRP are designed for use in explosion hazardous areas, as defined in the ATEX Directive 2014/34/EU. |
 |
 |

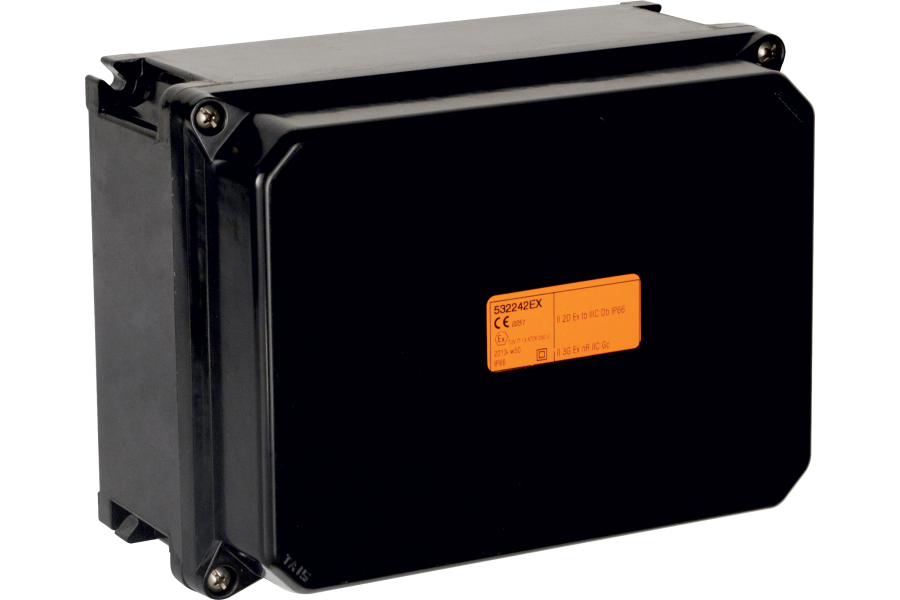

Boxes in thermosetting GRP with blind cover for the creation of multiple TAIS-EX socket boards IP66/IP67 zone 2 (GAS) and 21-22 (DUST) |
|

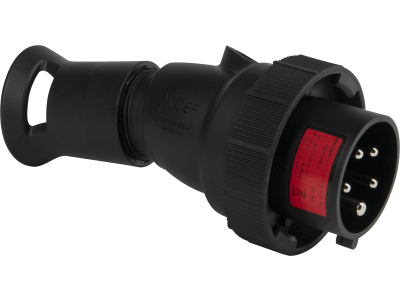

XCEE-EX Mobile plugs in technopolymer (antistatic isolating material) from 16A to 63A, IP66/IP67, for zone 2, 21, 22 XCEE-EX Low-voltage straight mobile plugs, standard type EN 60309-1 and EN 60309-2, suitable for use in explosion hazardous areas, as defined by the ATEX Directive 2014/34/EU. The range offers maximum ease of use, with details such as easy cable coupling, the possibility of use in suspension, the absence of screws to fix the grips and ergonomic shapes. |
 |
 |

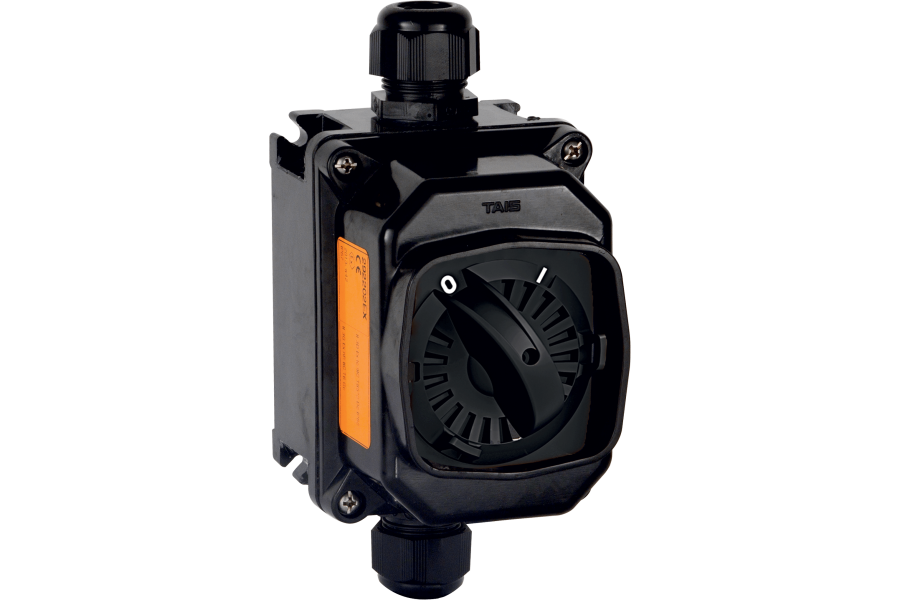

Isolator switches thermosetting GRP for wall-mounting 50-60Hz IP66 zone 2 (GAS) and 21-22 (DUST) The cover is attached to the body with stainless steel screws while the sealing is ensured by a gasket in non-ageing elastomer. Complete with earthing terminal inside the box. The load is of AC23A-AC3 type at rated current with short-circuit conditional current ≥ 10kA. Mechanical life of over one million operations. |
|

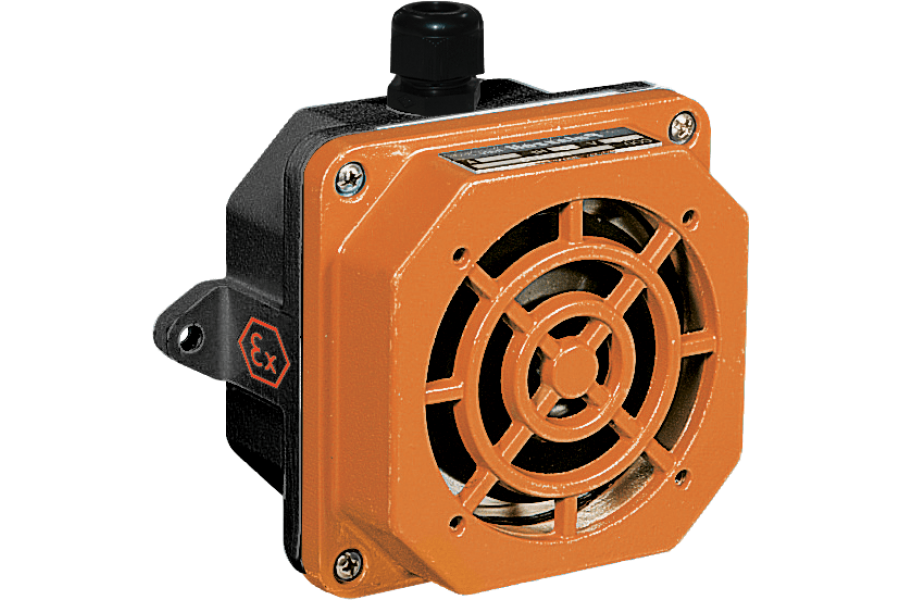

ALARM-EX sirens in aluminium alloy for continuous operation, suitable for applications in explosion hazardous areas as defined in ATEX Directive 2014/34/EU. The internal terminal block is in self-extinguishing thermosetting GRP insulating material and contributes to the non-sparking protection mode. The gaskets in non-ageing elastomer and the stainless steel screws guarantee the watertight sealing with IP66 protection rating for the sirens. |
 |
 |

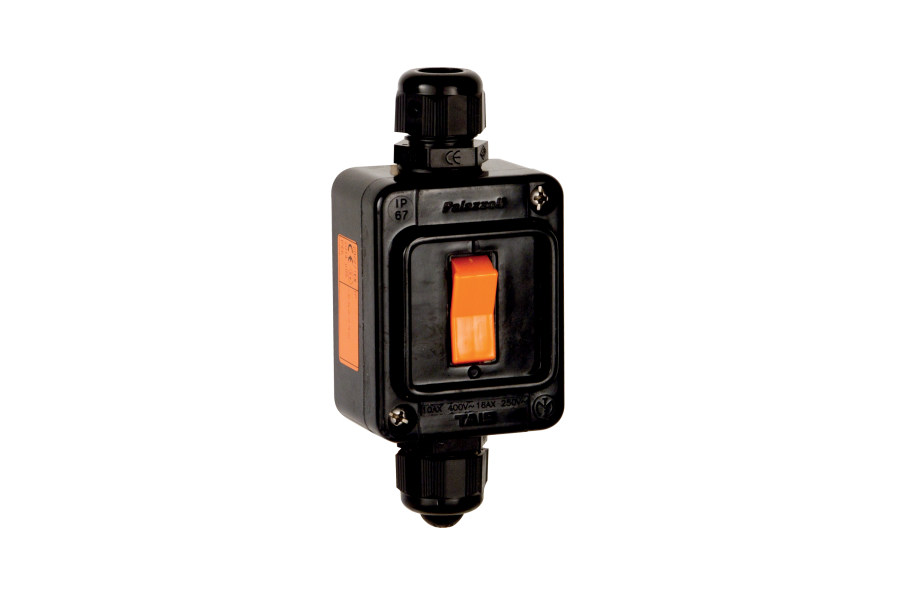

TAIS MIGNON-EX
Switches and push-buttons belonging to the TAIS MIGNON-EX series are made of the Palazzoli antistatic thermosetting GRP and are suitable for applications in areas at risk of explosive atmospheres as defined in ATEX Directive 2014/34/EU. The cover is attached to the back box by means of stainless steel screws, while the sealing is guaranteed by a gasket in non-ageing elastomer. TAIS MIGNON-EX products are IP66 rated. |
TAIS-EX INTERLOCKED SOCKET IN THERMOSETTING GRP ATEX 3P+E 63A 110V 4H IP66/67 EX CAT. 2D 3G
TAIS-EX INTERLOCKED SOCKET IN THERMOSETTING GRP ATEX 3P+N+E 63A 400V 6H IP66/67 EX CAT. 2D 3G
