PART#OM-3477 20A 250V GFCI Socket/GFCI Receptacle is Omega exclusive solution so far for reduce your cost of RCD with better sensitivity in 4-6 ma .
OM-3477 20A GFCI Receptacle / SOCKET 250V/60Hz Self Testing , 20A 250V GFCI Socket/GFCI Receptacle

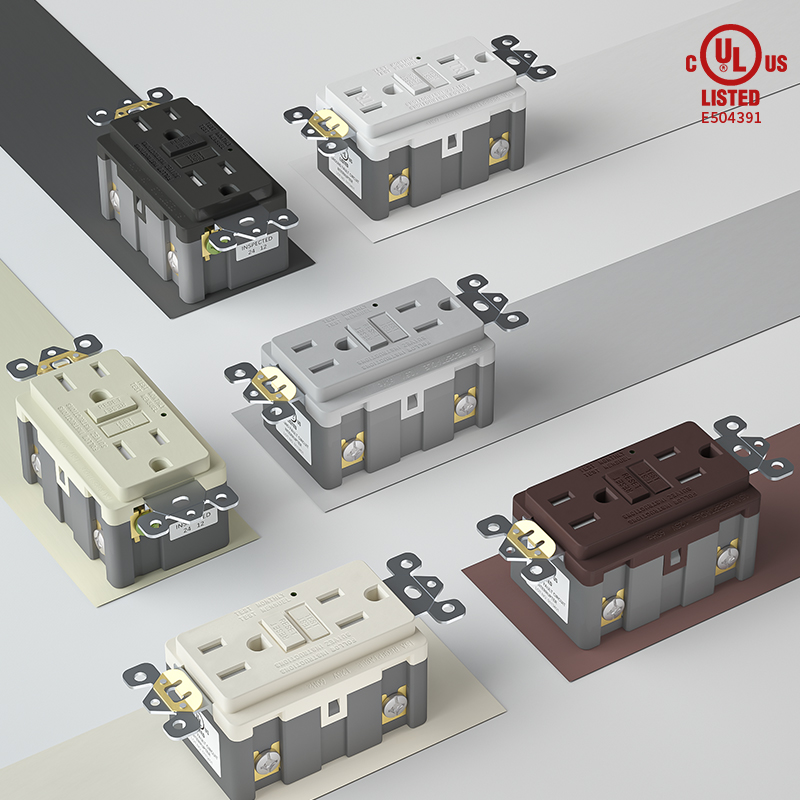

Product DescriptionSPECIFICATIONS· Part No.: OM-3477 · Description: 20 Amp, 250 Volt GFCI Receptacle, · Color: White, Ivory, Almond, Black · Rating: 20A, 250VAC · Pole: 2 · Wire: 3 · Termination: Side · Face Material: Thermoplastic · Body Material: Thermoplastic |
![]() |
CODE COMPLIANCE
· ROHS comply
MATERIAL CHARACTERISTICS
· Environmental: Flammability, UL-94, Rated V2
· Operating Temperature: -40° F to 149° F (-40° C to 65° C)

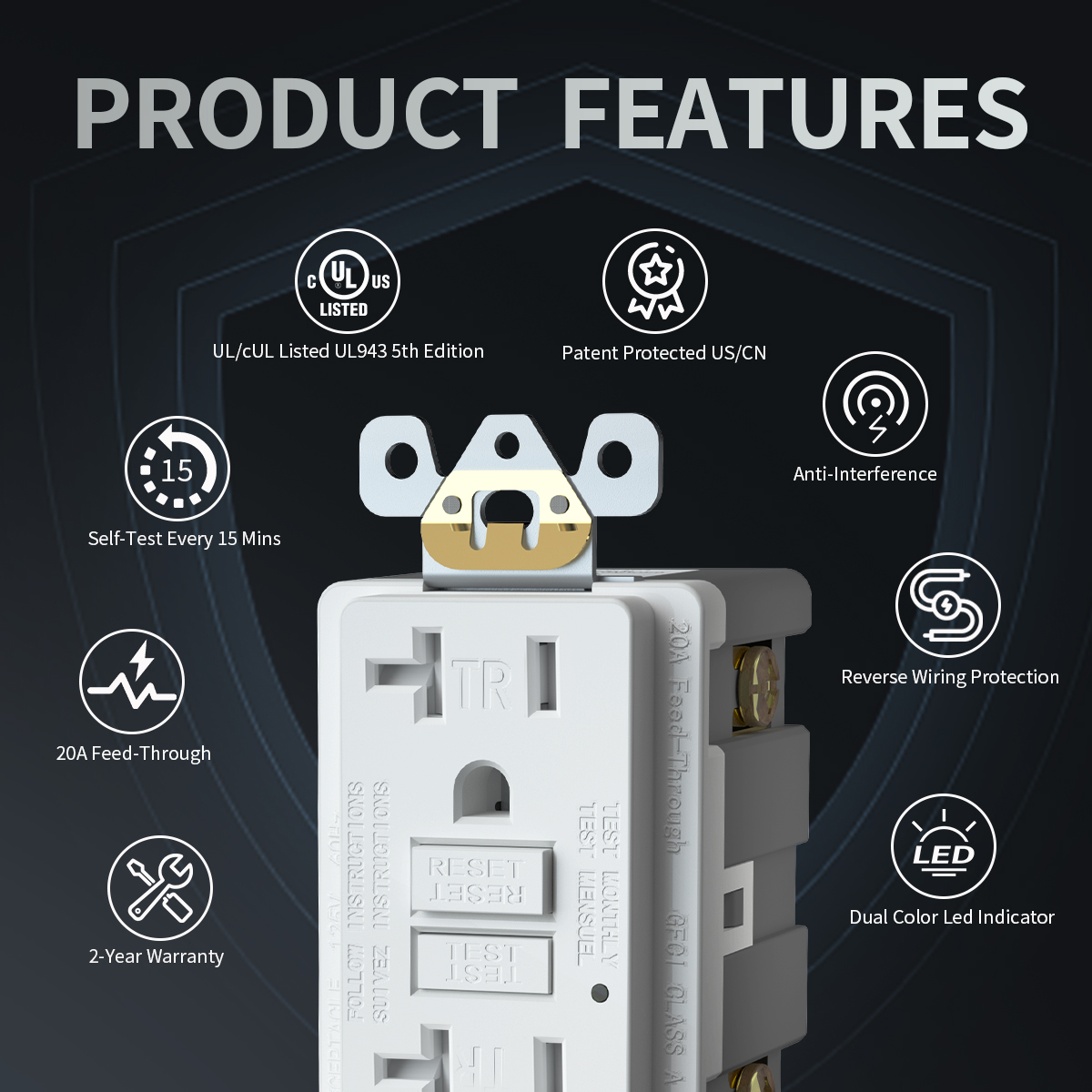

FEATURES
· Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted
· Auto-monitoring meeting the UL requirement
· End of Life light provide visual indication
· Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
· Electronics are designed to minimize any false triggers
· Reduced depth makes it easier to install in any electrical box, even shallow ones.
· Terminals allow for easy wiring options - back and side wire capable.
· External back wire clamps provide visual indication of proper wire seating.
· Withstands high torque and resists wire pullout.
· Standard brass self-grounding clip.
· Tripping threshold:5mA, Tripping time<25ms
· Improved immunity to high-frequency noise reduces nuisance tripping.
· Advanced electronics design provides superior resistance to electrical surges and over-voltages.
· Compatible with all Decora devices and wallplates; available in select Decora colors..
